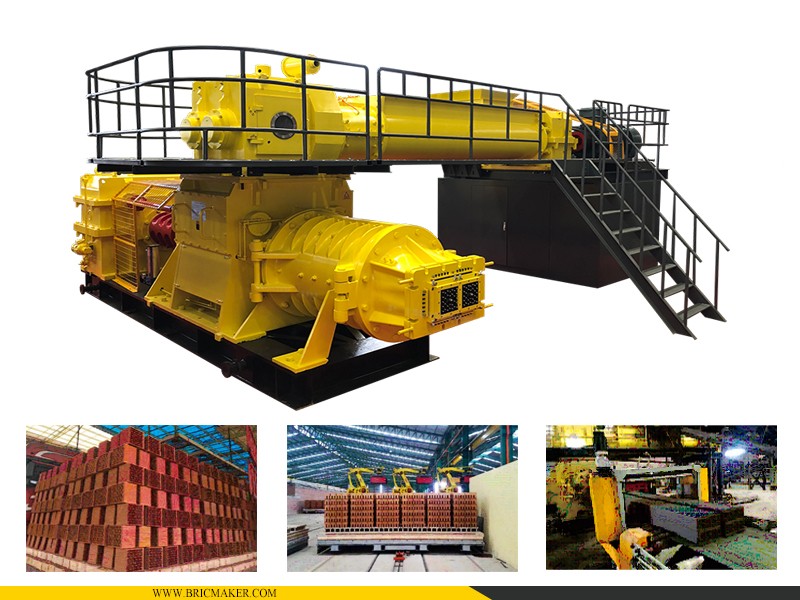

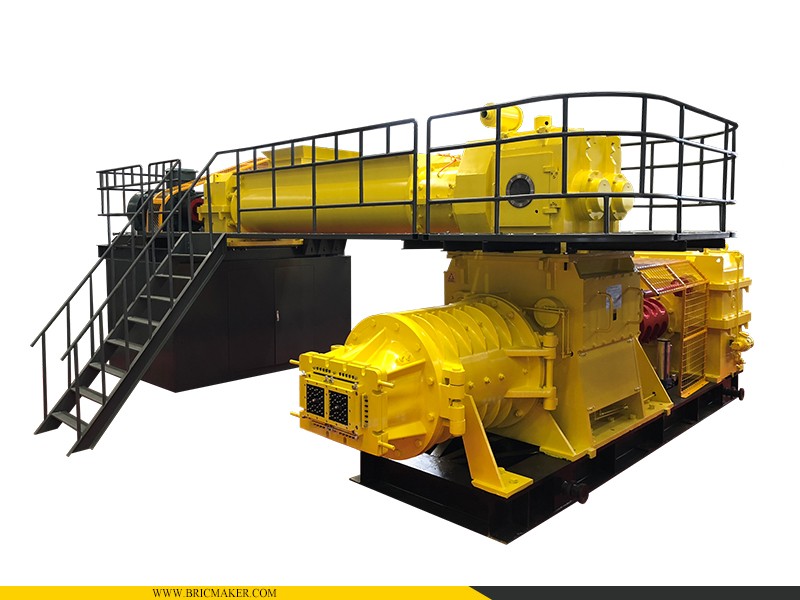

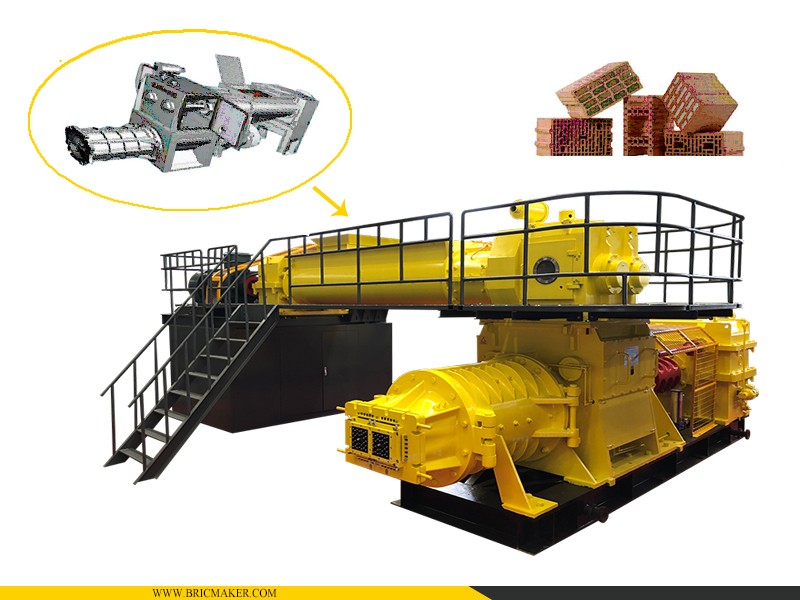

JKY75/65E Two Stages Bricks Shaping Vacuum Extruder 35,000-55,000 PCS / Hour


1. Brief introduction:

JKY75/65E two stages bricks vacuum extruder is a hard plastic extruder designed and manufactured with improved European technologies.
The receiving reamer diameter is 750mm, and the extruding end diameter is 650mm. Main axle assembly is about 3.5 tons with reliable quality and is 30% heavier than market similar extruders, which makes our extruder with bigger safety factors. JKY75/65E II extruder structure is with good rigidity. The auger and reamer are made of high chromium alloy Cr20Mo. The auger is casted by aluminum mold, the material density is big and the wear resistance is superior. According to different brick making raw materials, we have different suitable augers like type A, type B, Type C, Type D, Type F augers. Gearbox is advanced technology Chinese name brand hard tooth type, first stage gearbox is 5200kg and second stage gearbox is 11200kg. The transmission efficiency is high. The mixing axle, extrusion axle material is 40Cr and tempering treated. The mixing reamer adopts a sheath structure and the reamer is not perforated, worn nor broken.
JKY75/65E II vacuum extruder is able to extrude 35000 to 55000 pcs standard Chinese bricks per hour. The output is high and the energy consumption is low. The permit extrusion pressure is big, which improves the strength of green bricks.
This extruder is able to shape hollow thermal insulation bricks, ganged bricks, decorative bricks, etc from raw materials like shale, coal gangue, fly ash, tailings, and construction soils

2. Main features:
(1) Good structural rigidity, high chromium alloy is used for the auger and reamer, with good wear resistance.
(2) High allowable extrusion pressure, higher strength of wet bricks.
(3) Suitable for sintered products such as thermal insulation blocks, ganged bricks, decorative bricks, etc. using coal gangue, fly ash, shale, tailings, sludge, and slag as raw materials.
(4) High output and low energy consumption.

3. Main technical parameters:

Model

JKY75/65E IV Heavy Duty Vacuum Extruder

Production Capacity

35,000-55,000 Pcs/h

Extrusion Pressure

4.0 Mpa

Extrusion Moisture

13-16 %

Vacuum Degree

≤-0.092 Mpa

Main shaft rotation

18-22rpm

Compressed air pressure

0.6MPa

Total Power

400+250+1.5 Kw

Overall Dimensions

7000×6300×3200

Total Weight

52,000 kg
