  • JKY75DIII 4.0 Hard Plastic Vacuum Extruder Two Mud Strips High Output
  • JKY75DIII 4.0 Hard Plastic Vacuum Extruder Two Mud Strips High Output
JKY75DIII 4.0 Hard Plastic Vacuum Extruder Two Mud Strips High OutputJKY75DIII 4.0 Hard Plastic Vacuum Extruder Two Mud Strips High Output

JKY75DIII 4.0 Hard Plastic Vacuum Extruder Two Mud Strips High Output

  • Category: Vacuum Extruder
  • Model: JKY75D III 4.0 Extruder
  • Capacity: 25000-40000 pcs/hour
  • Extrusion pressure: 4.0 Mpa
  • Extrusion Moisture: 13-18%
  • INQUIRY   EMAIL

Product Detail

Product Tags

Product Videos

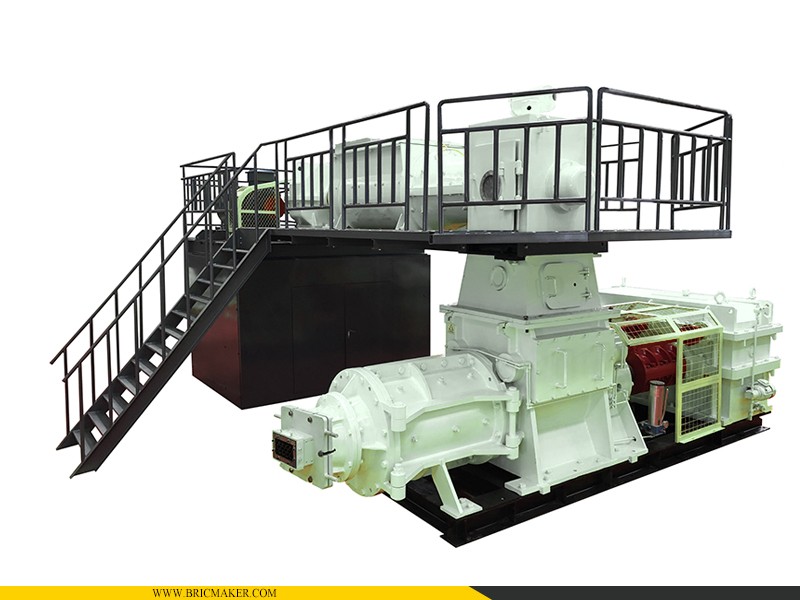

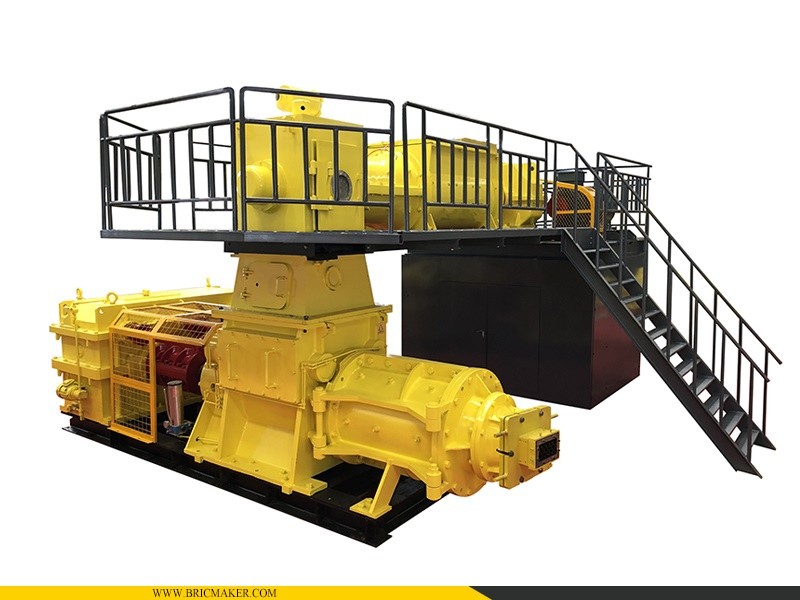

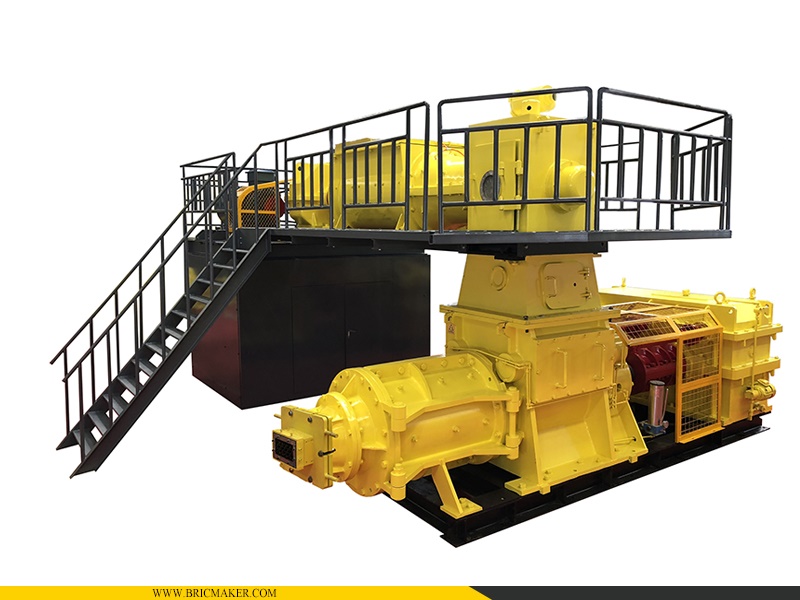

JKY75DIII 4.0 Hard Plastic Vacuum Extruder Two Mud Strips High Output


1. Brief introduction:

JKY75DIII 4.0 Hard Plastic Vacuum Extruder is designed and manufactured according to USA brick making technologies. Equipped with up to 490kw, this extruder is used for high output brick making production line, whose hourly output could up to 40,000 pcs wet Chinese standard bricks.

The extrusion pressure is up to 4.0 Mpa and the permitted extruding moisture content of wet bricks could be 13-18%, which saves energy for drying process. Besides, the big extrude pressure could extrude two mud strips uniformly and consistently and the wet bricks are with high strength, which makes it easier to transfer and stack in the balance brick making process.

JKY75D III vacuum extruder is well designed with big safety factors and good structure stiffness. The main shaft is 30% heavier than market similar product. Auger and reamer are made of high chromium alloy by precision aluminum mold casting, with bigger material density and wear resistance, and the same quality augers are exported to Spain. The gearbox adopts Chinese name brand hard tooth gearbox and NGC’s transmission technologies with high transmission efficiency.

The axles of mixing and extruding are made of 40Cr after quenching and tempering treatment.

This extruder is able to extrude hollow thermal insulation bricks, ganged bricks, and decorative bricks, from wide ranges of raw materials like shale, coal gangue, fly ash, tailings, and construction soils, etc.


2. Main features:
(1) High output up to 40,000 pcs wet bricks per hour;
(2) Higher efficiency, save energy 25%;
(3) Big extrusion pressure 4.0MPa, lower extruder moisture, stronger wet bricks;
(4) Advanced design technologies, Spanish extruding auger;
(5) Wear resistance materials application;
(6) Wider applications of raw materials to make building bricks;

3. Main technical parameters:

Model

JKY75D III-4.0 Vacuum Extruder

Production Capacity

25,000-40,000 Pcs/h

Extrusion Pressure

4.0 Mpa

Extrusion Moisture

12-18 %

Vacuum Degree

-0.092 Mpa

Main shaft rotation

28 rpm

Compressed air pressure

0.6MPa

Total Power

355+132 Kw

Overall Dimensions

5500×5100×3200

Total Weight

40,000 kg
