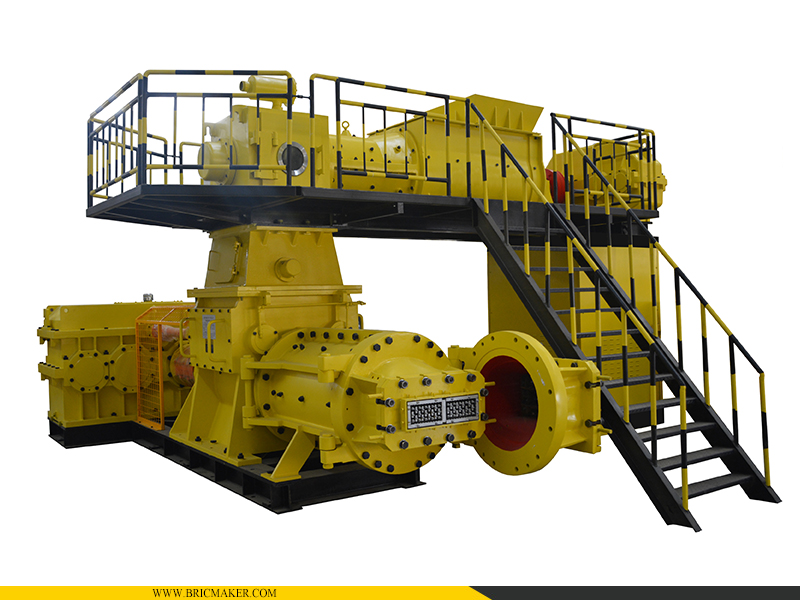

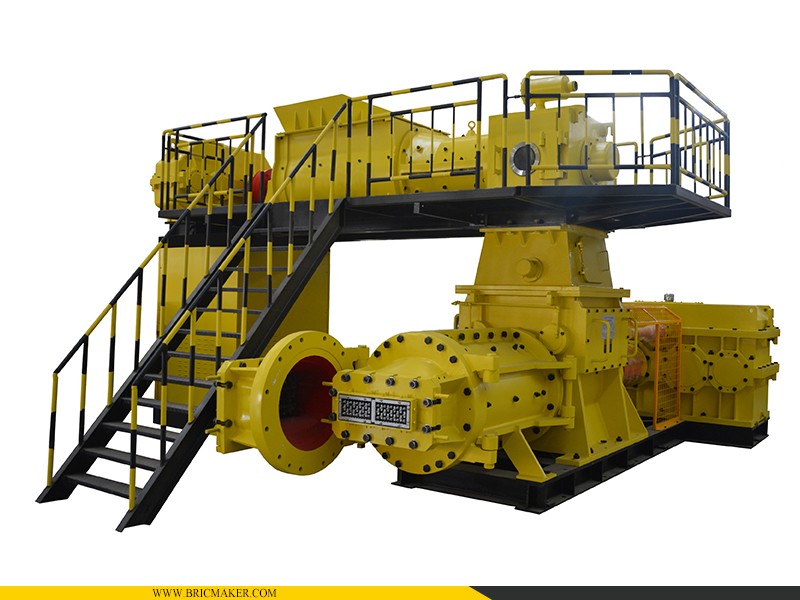

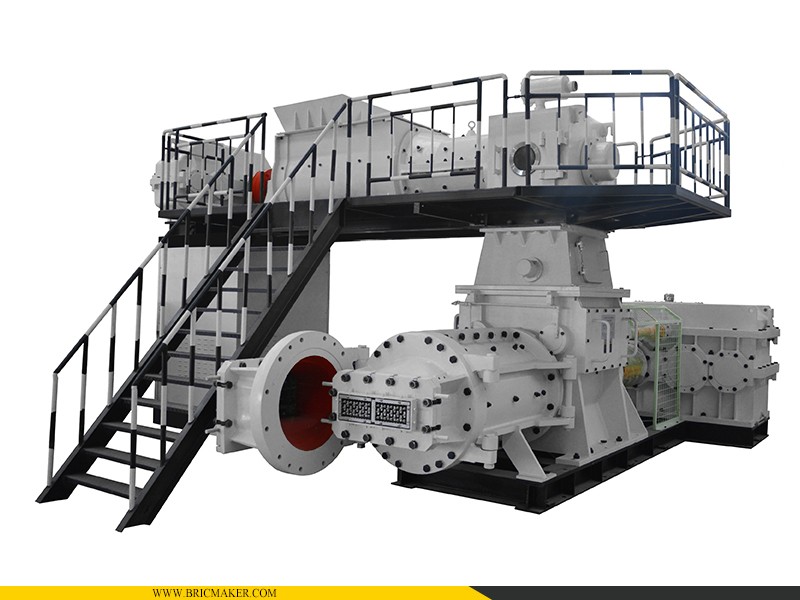

JKY75DII 4.0 Hard Plastic Vacuum Extruder Machine Soil / Fly Ash / Coal Gangue / Shale


1. Brief introduction:

JKY75DII 4.0 Hard Plastic Vacuum Extruder is widely applied in brick plant producing hollow thermal insulation bricks, ganged bricks, and decorative bricks, from wide ranges of raw materials like shale, coal gangue, fly ash, tailings, and construction soils, etc.
Due to the application of USA extrusion technologies, Spanish auger, NGC’s gearbox transmission technologies, wear resistant materials application and other advanced technologies, JKY75D II vacuum extruder is with high output and high efficiency. The equipped power consumption is 425KW and its hourly productivity of wet bricks could up to 35,000 pcs Chinese standard bricks.
JKY75D II extruder is with high extrusion pressure of 4.0 Mpa and the permitted shaping moisture content of wet bricks could be lower as 13-18%, saving energy and time for drying process. Besides, the big extrude pressure could extrude two mud strips uniformly and consistently and the extruded green bricks are with higher strength, which will greatly improve the stack efficiency and firing efficiency.
JKY75D II vacuum extruder is well designed with big safety factors and good structure stiffness. The main shaft is 30% heavier. Auger and reamer are made of high chromium alloy by precision aluminum mold casting, with bigger material density and wear resistance. NGC’s transmission technologies were applied in our head tooth gearbox, which improves the transmission efficiency and the reliability. The axles of mixing and extruding are made of quenched and tempered 40Cr, which will not break in normal running.


2. Main features:
(1) High output up to 35,000 pcs wet bricks per hour;
(2) Higher efficiency, save energy 25%;
(3) Big extrusion pressure 4.0MPa, lower extruder moisture, stronger wet bricks;
(4) Advanced design technologies, Spanish extruding auger;
(5) Wear resistance materials application;
(6) Suitable for raw materials like shale, coal gangue, fly ash, tailings, and construction soils, etc;

3. Main technical parameters:

Model

JKY75D III-4.0 Vacuum Extruder

Production Capacity

25,000-35,000 Pcs/h

Extrusion Pressure

4.0 Mpa

Extrusion Moisture

12-18 %

Vacuum Degree

≤-0.092 Mpa

Main shaft rotation

28 rpm

Compressed air pressure

0.6 MPa

Total Power

315+110 Kw

Overall Dimensions

5500×5100×3200

Total Weight

35,000 kg
