Two Robots Auto Stack Line Green Brick Billet Transfer Turnover Group Stack Line


1. Brief introduction
Two Robots Auto Brick Billet Turnover Group Stack line is applied for automatic modern brick factory. It realizes the function of store, transfer, turnover, gap, stack green brick automatically. Equipped with two robots, the system is more reliable and with wider stack areas.

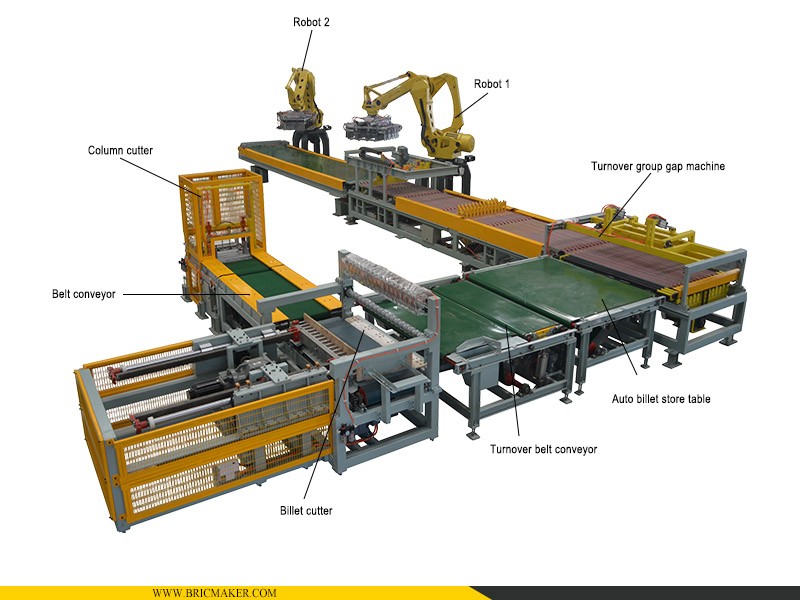

The line consists of turnover belt conveyor, auto billet store table, single billet turnover group table, two robots and PLC control system, etc.

2. Main features:
  • PLC control with name brand control module and electric components.
  • Applicable to wide ranges of brick sizes.
  • Applicable to customer’s stack type.
  • Turnover the green brick 90 degrees for more reasonable stack type.
  • Reliable, flexible, easy operation.
  • High automation, saving manual work.


3. Main parameters:

Robot Model

Unit

450KG

500KG

700KG

800KG

Quantity

set

2

2

2

2

Frequency

Times/h

240-400

240-400

200-300

200-300

Capacity

Pcs/h

14400-24400

14400-24400

20700-36720

20700-36720

Stacking Type

\

3X7, 4X6

3X7, 4X6

4X6, 6X18

4X9, 6X18

Total Power

kw

25-39+19*2

25-39+16.7*2

25-39+22*2

39+20.7*2

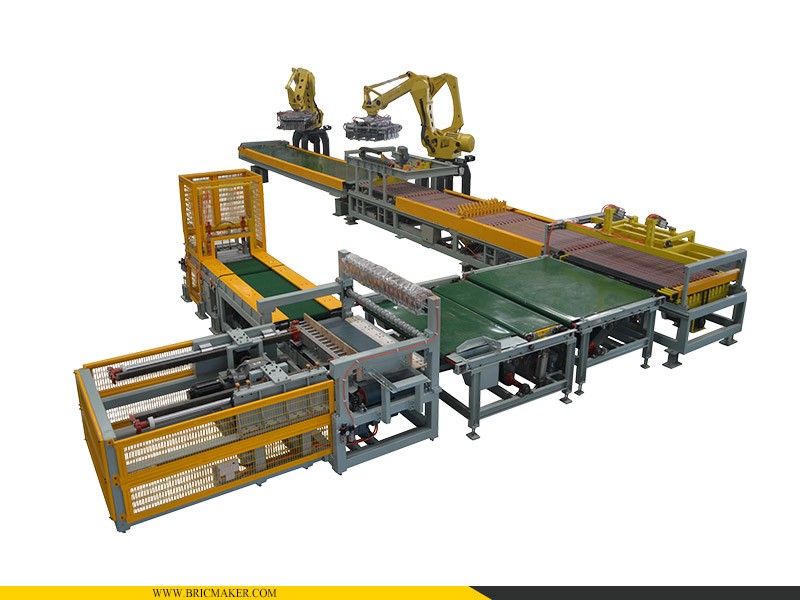

4. Detail image:
