JKY75/65E II Two Stages Bricks Shaping Vacuum Extruder 30000-40000 PCS / Hour
1. Brief introduction:
JKY75/65E II Two stages vacuum extruder is a vacuum hard plastic extruder. This model extruder is designed and modified on basis of imported European technologies.
The shaping moisture is around 13-16% and the extruded green bricks are with high strength due to the big extrude pressure, which allows multi strips extruding and more layers of brick stacks. The equipped power of JKY75/65E II vacuum extruder is 490KW and the hourly output of green bricks is 30000 to 40000 pcs.
This extruder is able to shape hollow thermal insulation bricks, ganged bricks, and decorative bricks, from wide ranges of raw materials like shale, coal gangue, fly ash, tailings, and construction soils.
2. Main features:
(1) Reliable main shaft, with higher safety factors.
(2) Auger and reamer are made of high chromium alloy, with good wear resistance.
(3) Wide options of auger types A, B, C, D, F, to adapt different raw materials.
(4) Advanced name brand Chinese gearbox, with high transmission efficiency and reliability.
(5) Mixing reamer adopts sheath structure without drilling, worn nor broken.
(6) High output and low energy consumption.
3. Main technical parameters:
|
Model
|
JKY75/65E II Vacuum Extruder
|
|
Production Capacity
|
30,000-40,000 Pcs/h
|
|
Extrusion Pressure
|
4.0 Mpa
|
|
Extrusion Moisture
|
13-16 %
|
|
Vacuum Degree
|
≤-0.092 Mpa
|
|
Main shaft rotation
|
18-22rpm
|
|
Compressed air pressure
|
0.6MPa
|
|
Total Power
|
355+132 Kw
|
|
Overall Dimensions
|
7000×6300×3200
|
|
Total Weight
|
46,000 kg
|

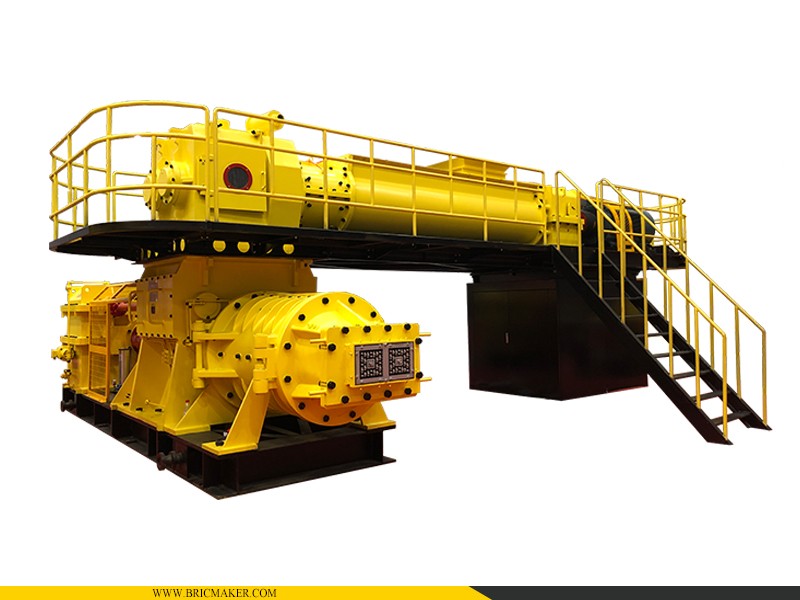

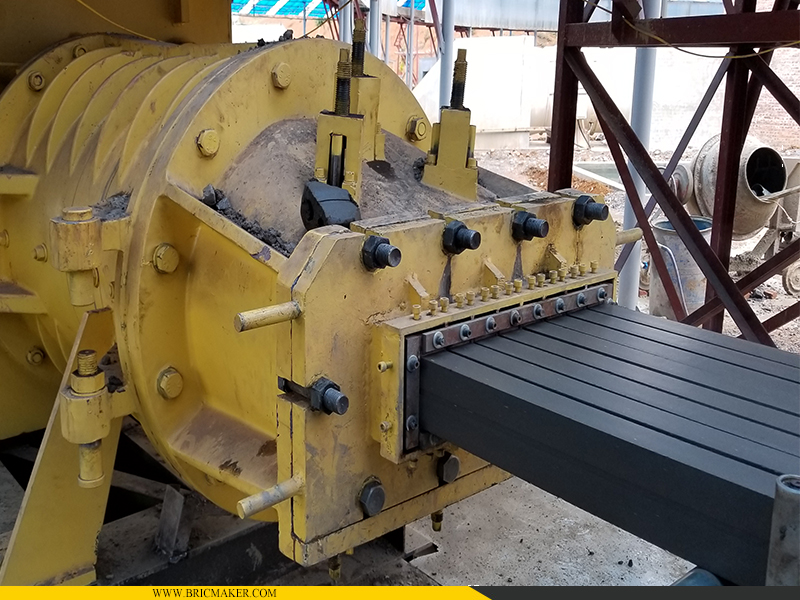

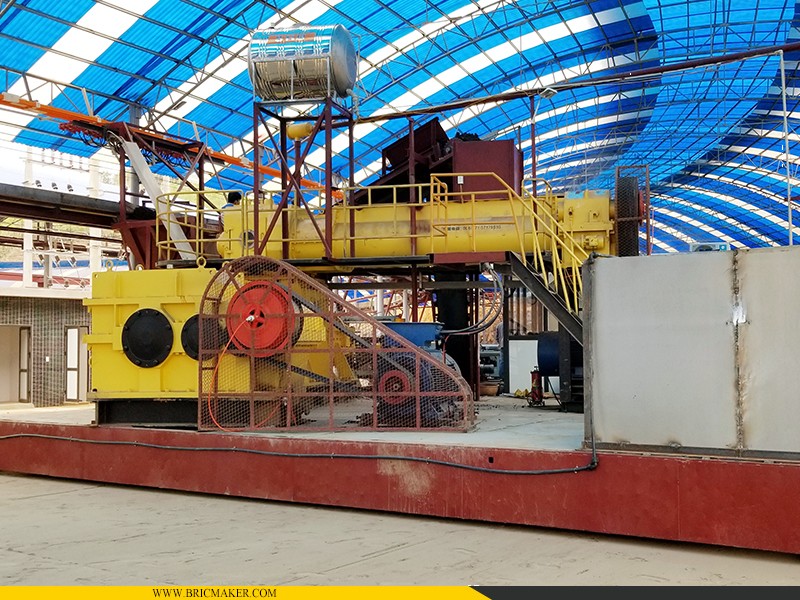

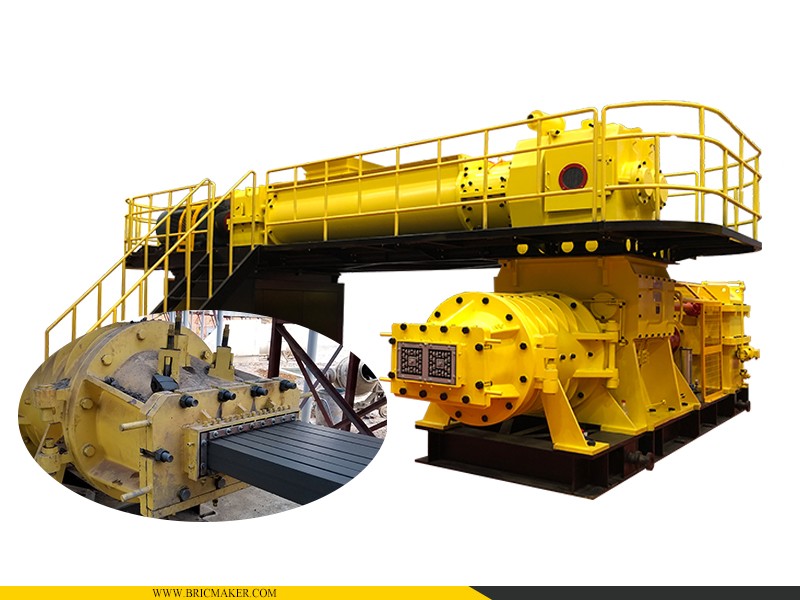

4. Detail images:
