Aluminum Silicate Fiber Module High Temperature Flame Retardant Ceramic Fiber

Aluminum Silicate Fiber Module High Temperature Flame Retardant Ceramic Fiber

1. Product description

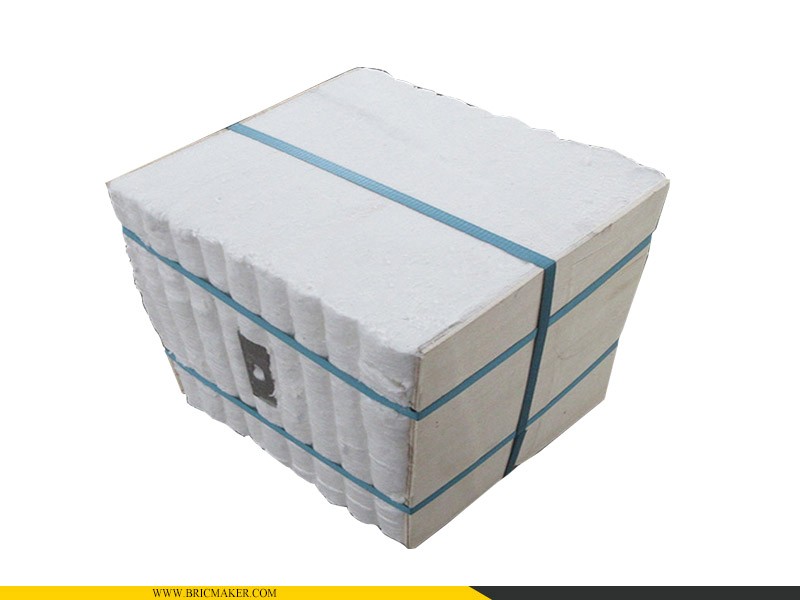

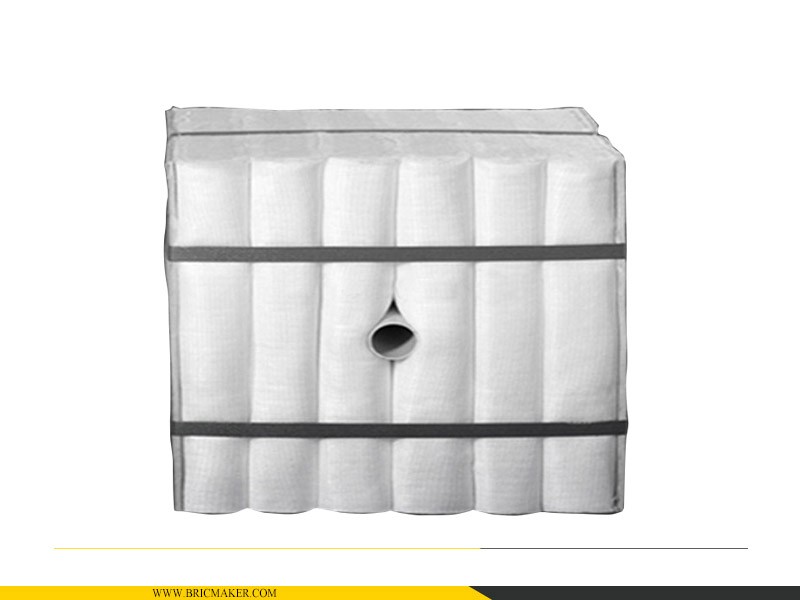

The aluminum silicate fiber modules are made from needle-punched ceramic fiber mats and processed on special machines depending on the structure and dimensions of the module. During processing, a certain degree of compression is maintained to ensure that the flexible ceramic fiber module expands in different directions when installed into the wall covering, so that the ceramic fiber modules are extruded as a unit. The ceramic fiber folding module can be directly attached to the anchor nail of the steel plate of the industrial furnace shell with various anchors.

2. Product features

1) Different anchor shapes on the back of the folding module allow the folding module to be installed in a parallel or patchwork pattern.
2) Ceramic fiber modules are compressed in different directions without gaps when dissolving.
3) The flexible fiber layer can withstand external mechanical forces.
4) The flexibility of the fiber jacket can compensate for the deformation of the furnace shell. This means there is no space between the elements.
5) Due to its low weight, it has low heat absorption when used as a thermal insulation material
6) The low thermal conductivity guarantees a high energy saving effect
7) The cladding body does not require drying or curing and can therefore be used immediately be used during installation.
8) The anchoring system is located away from the hot surface of the element so that the metal anchor is at a relatively low temperature

3. Typical application

Metallurgy, petrochemical industry, brick kilns

Machinery, building materials

Nonferrous metals and other industries

Industrial furnace, heating device and furnace lining

4. Main technical parameters

Product Category	Normal Ceramic Fiber Module	Standard Ceramic Fiber Module	High Purity Ceramic Fiber Module	High Alumina Ceramic Fiber Module	Low Zirconium Ceramic Fiber Module	Zirconium Ceramic Fiber Module
Classification Temperature ℃	1050	1260	1260	1350	1350	1430
Density kg/m3	180-240
Heating Linear Shrinkage %	950℃*24h≤3	1000℃*24h≤3	1100℃*24h≤3	1200℃*24h≤3	1250℃*24h≤3	1350℃*24h≤3
Size	300*300* Insulation thickness Customized requirements acceptable

5. Application

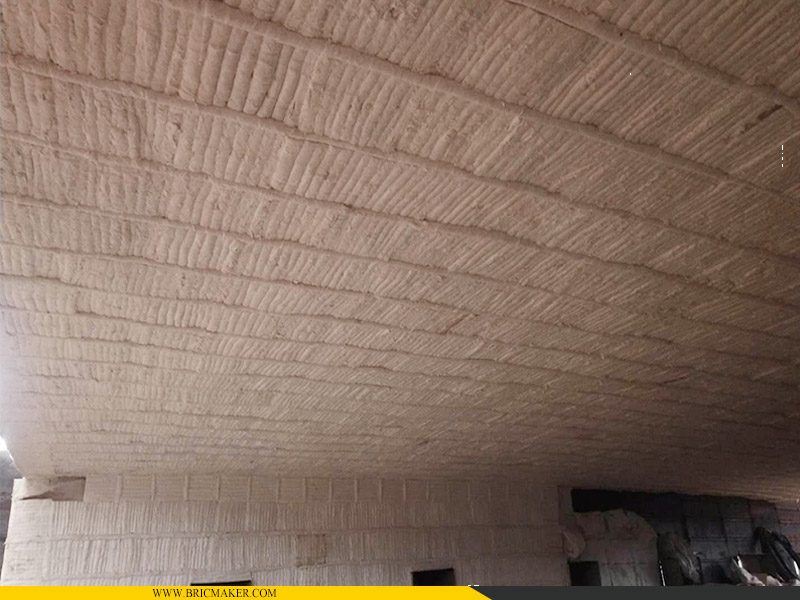

Roof of tunnel kiln

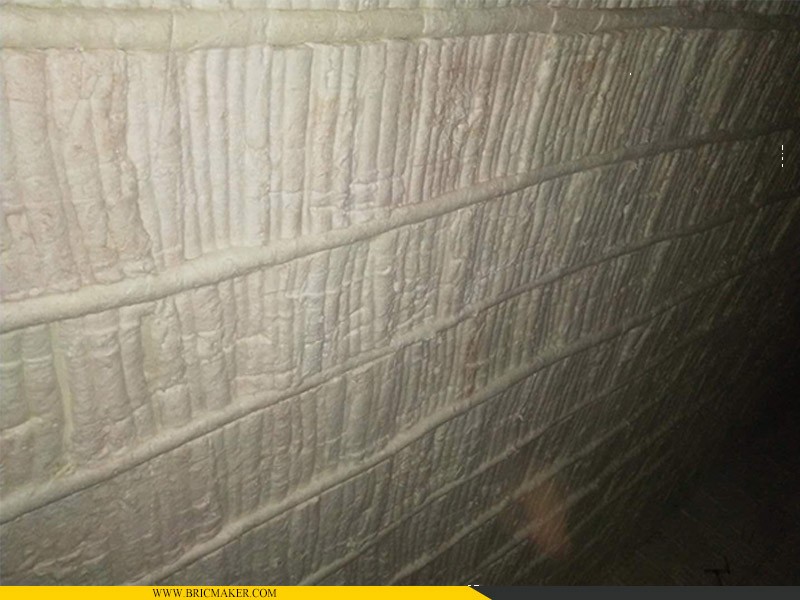

Rotary tunnel kiln walls

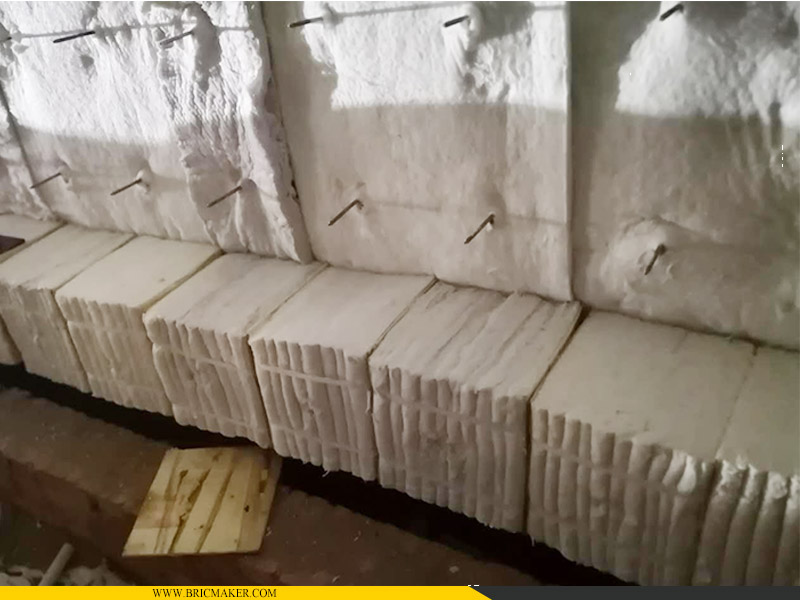

6. Aluminum silicate fiber module assembly in workshop:
