Reversible Mobile Soil Spreader Machine Aging Silo Equipment


1. Brief introduction:

The aging silo is mainly used to age the brick making raw materials to make the moisture diffuse evenly, making the raw materials more plastic after aging, and at the same time, storing the raw materials for a short period of time. Aging silo equipment mainly includes reversible soil spreader, multi-bucket excavator.

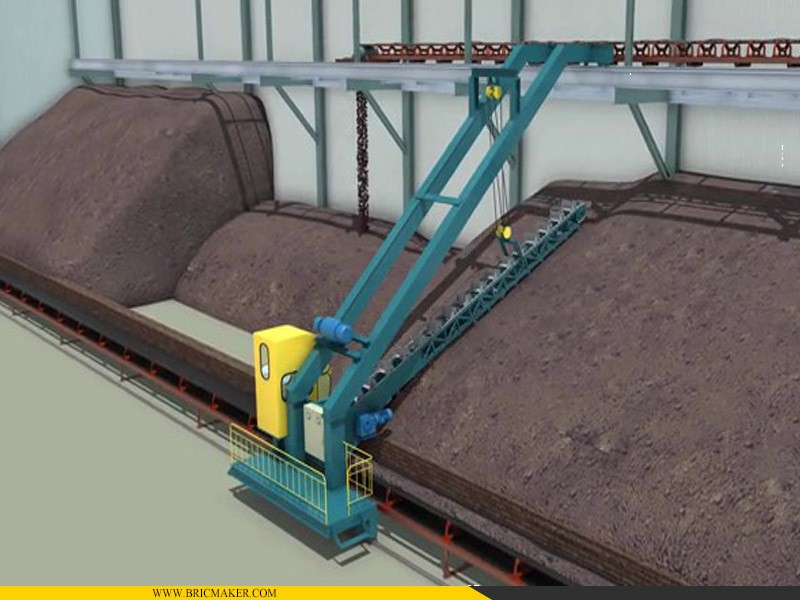

The reversible moving soil spreader machine uses rollers installed on the fixed track to drive the machine head to move on the track, thereby achieving uniform spread the soils inside the silo. It is one of the indispensable equipment in the aging silo during the brick and tile production process.


2. Structure features:

The soil spreader machine is mainly composed of motor, reducer, V-belt and rails. The main structure adopts H-shaped hanger design. The H-shaped hanger moves as a whole during the soil spreading process. At the same time, both ends of the H-shaped hanger are also equipped with reversible belt conveyors to spread the raw materials in the horizontal direction of the aging silo. This design has a large storage capacity, more uniform aging of materials, and better effects. This is currently the most advanced aging method in the world.


3. Main technical parameters:

Model

Capacity:M3/h

Drive power: KW

Transmission power :KW

Dimension: MM

DS60X18-30m

40-50

3

3

600X18000-30000

DS60X30-50m

40-50

5.5

7.5

600X30000-50000

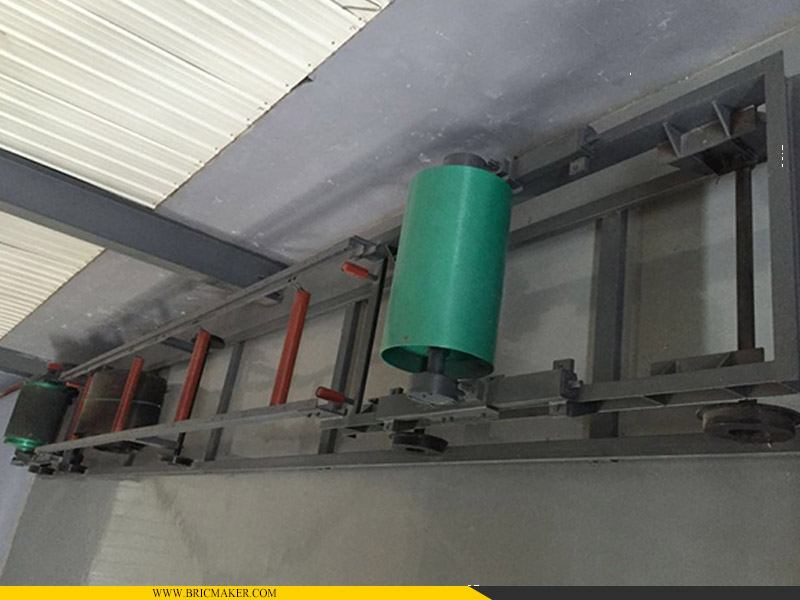

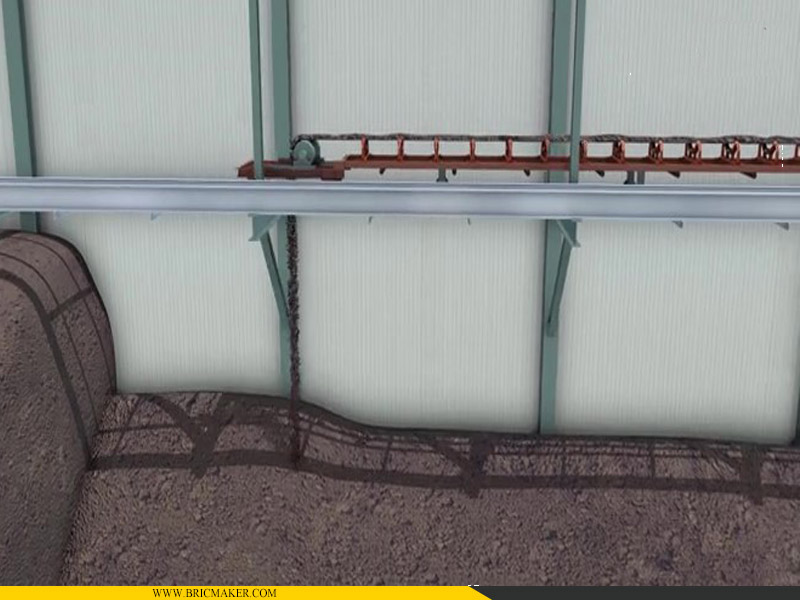

4. Detail images:
