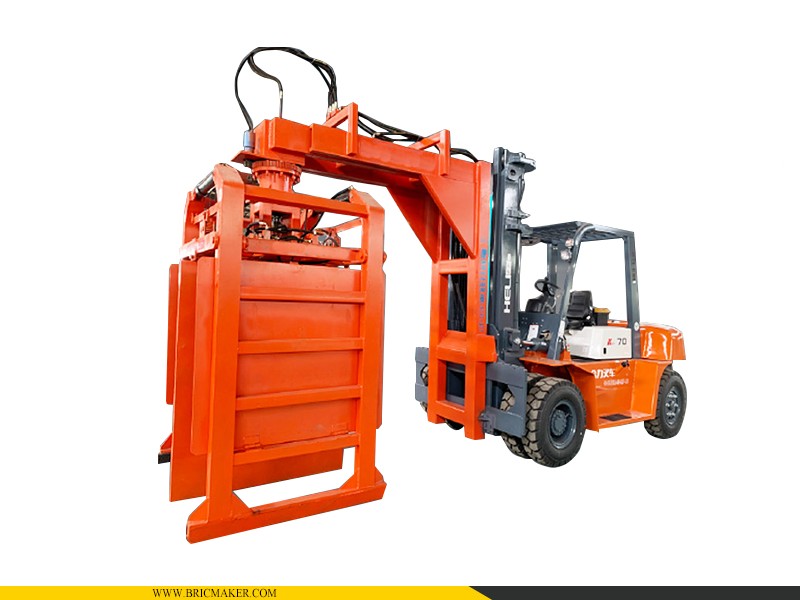

Red Bricks Grab Lifter Forklift Type Palletised / Bundled Bricks Handling Loading


1. Brief introduction:


Brick Stack Grab Lifter is used to grab the fired red bricks from kiln cars or rotary kiln and load them onto trucks. It is widely applied in red bricks factories. There are two types of brick stack grabber: one is forklift type and another is gantry type.

The forklift type brick grabber is reformed based on forklift. It is used to grab piled bricks from kiln car directly or on the exit site of rotary kiln. So the fired red bricks still not be packed in into pallet. Most of the fired bricks are removed by manual work. So this brick grabber could save lots of man power and improve the efficiency. Besides, the cost is much lower than automatic robot. No matter the brick factory adopts tunnel kiln or rotary kiln, this brick grabber could adapt to the production plant flexibly.

The forklift type brick grabber is with high strength and wear resistance, ensure the brick piles grabbing and removing work done safely and continuously.


2. Why choose brick grab lifter for your brick factory?

(1) It can stack the bricks two or more layers, saves floor space.

(2) It can load the brick piles directly onto the truck, improving work efficiency.

(3) Not affected by working weather, no need to stop production, and improve work efficiency.

(4) One time clamping to improve product quality and quantity.

(5) Reduce the number of workers and reduce the production and management costs of the enterprise.

(6) Improve the turnover efficiency of transfer vehicles.


3. Technical parameters:

Applicable brick type

Standard brick, porous brick, hollow block, etc

Lifting height

2000-4500mm

Forklift truck

3000-7000kg

Red brick stack type

Customized

Working pressure

9-13 Mpa

Left and right movement

200mm

Clamp weight

1000-5000kg

Clamp thickness

Customized

Clamp arm length

Customized

Clamp range

Customized

Rotation angle

180-360°

Telescopic boom length

1000-5000 mm

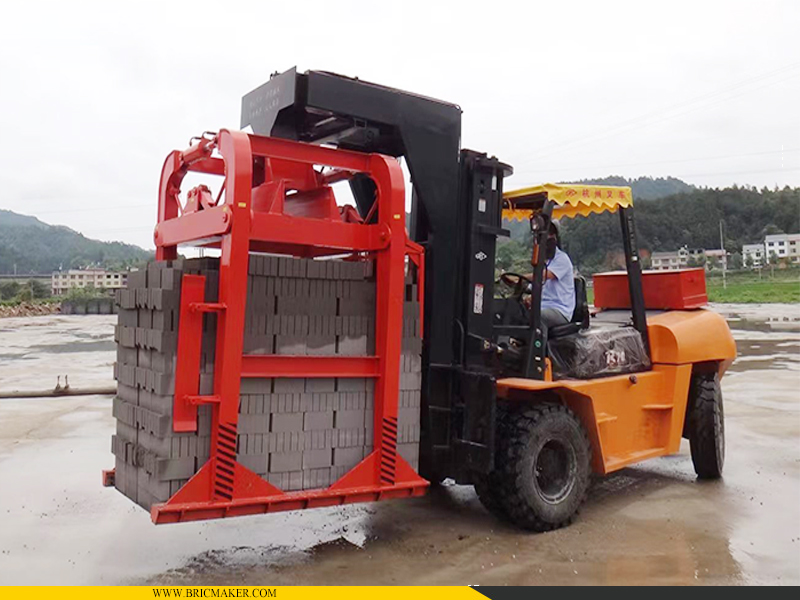

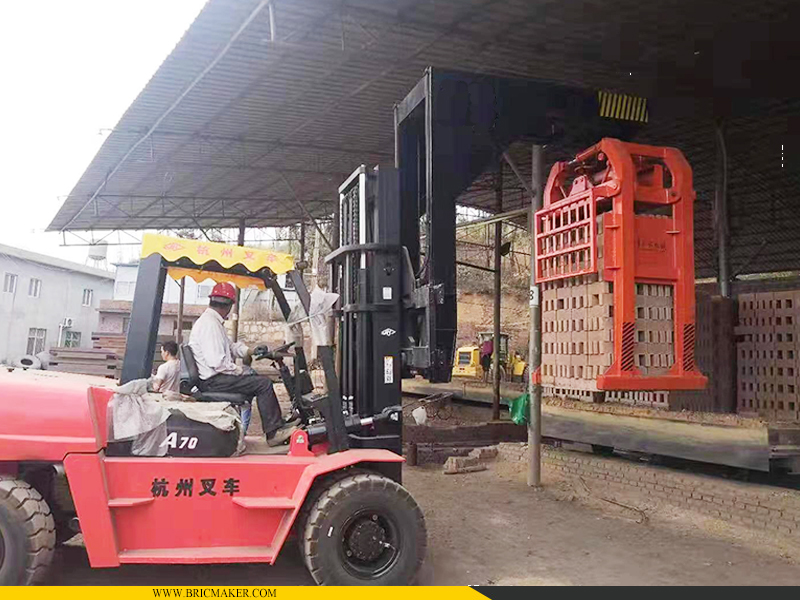

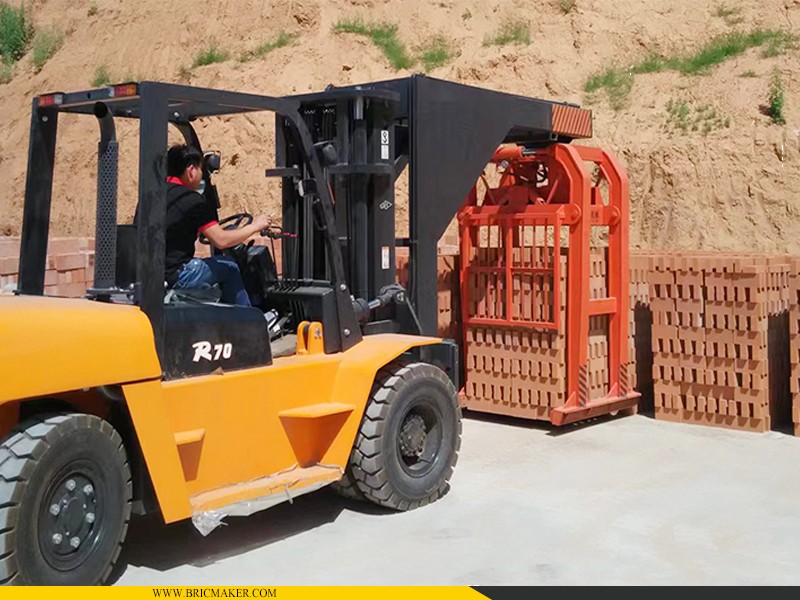

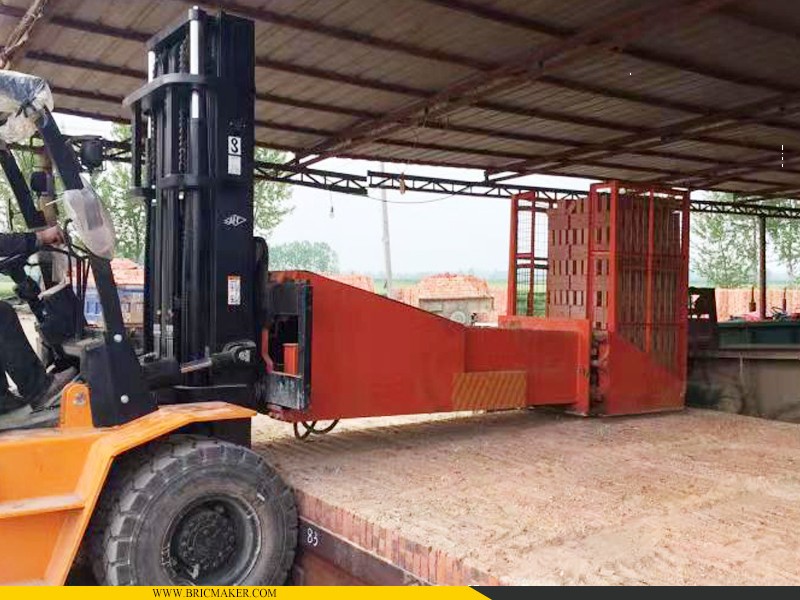

4. Detail images:
