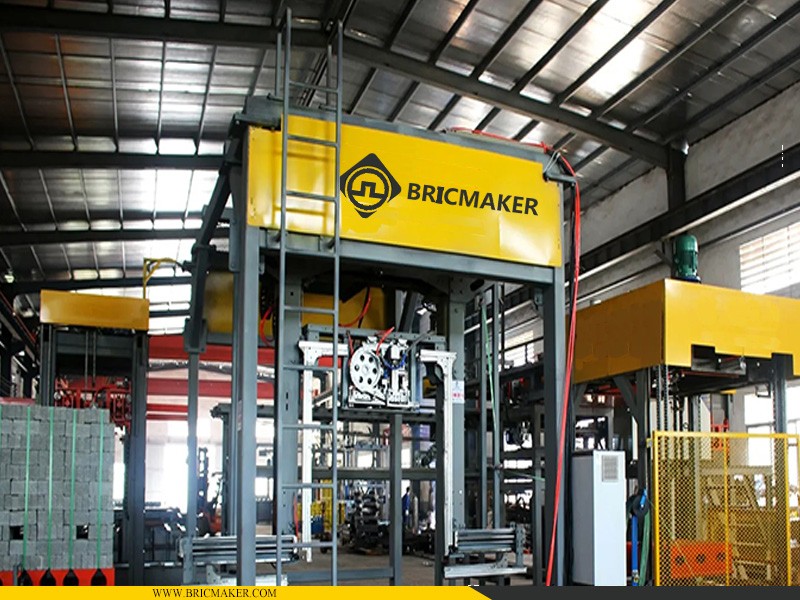

Automatic Brick Package Machine Strap Brick Pallet with Tray


1. Brief introduction:

This machine is widely used to strap and packing the brick pallets without tray automatically. It is normally used together with red bricks stack robot in modern automatic brick factories.

It is specially designed for red bricks industry. The machine upper part could move horizontally, the head could lift up and down, and the lower chain tray is to receive the pallet and rotate it.  The structure is simple, high efficient and easy maintenance.


2. Main technical parameters:

Power

9KW

Maximum tightening force

3500N (adjustable)

Threading speed

2-4.2m/s(adjustable)

Joint welding speed

0.3-1.5s(adjustable)

Welding method

High frequency friction (pneumatic/electric)

Welding strength

96%

Strap material

PET

Strap size

Width(12-16mm), thickness(0.5-0.8mm)

Brick package size

1m*1m*(0.7-1.6m) or customized

Machine dimension

(W)2700 x( L ) 2000 x( H )3400mm

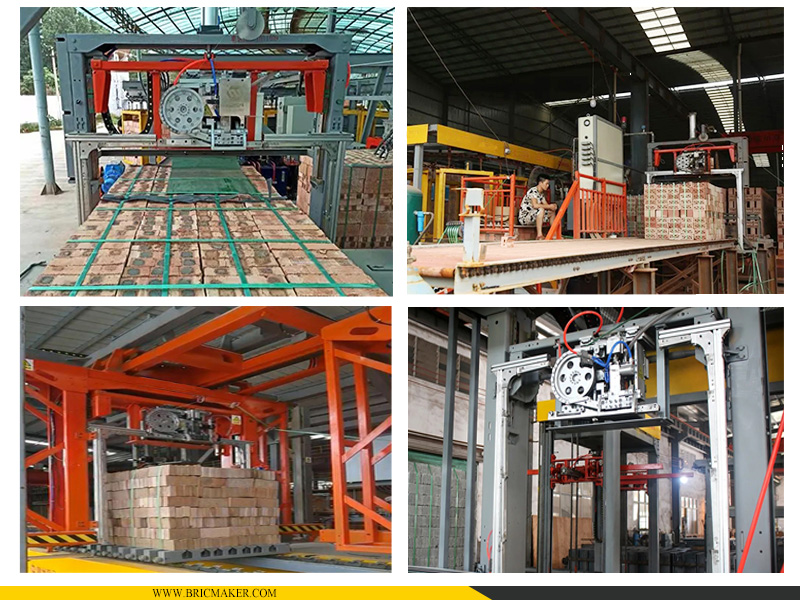

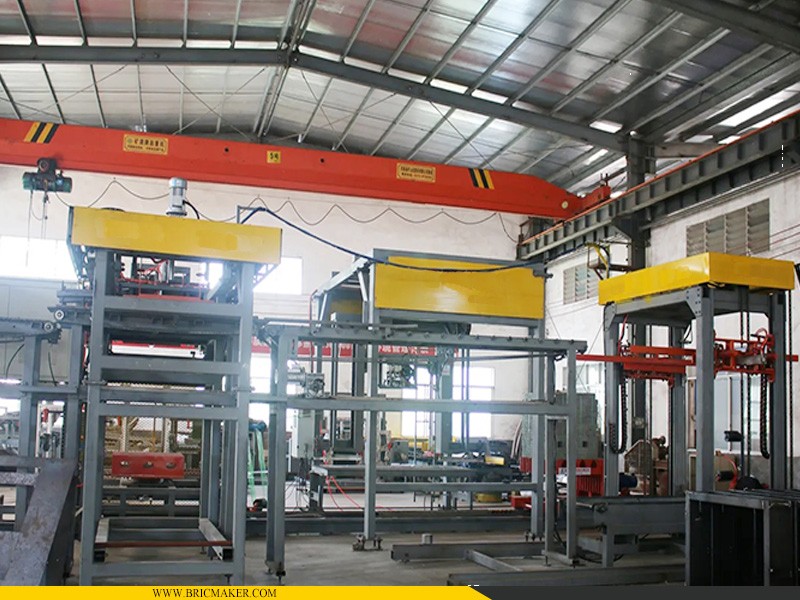

3. Detail images:


4. Working video:
