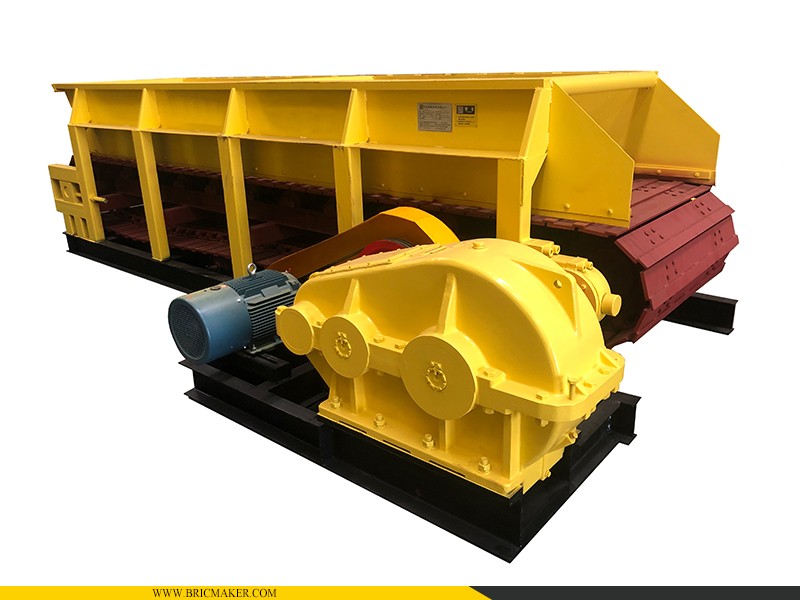

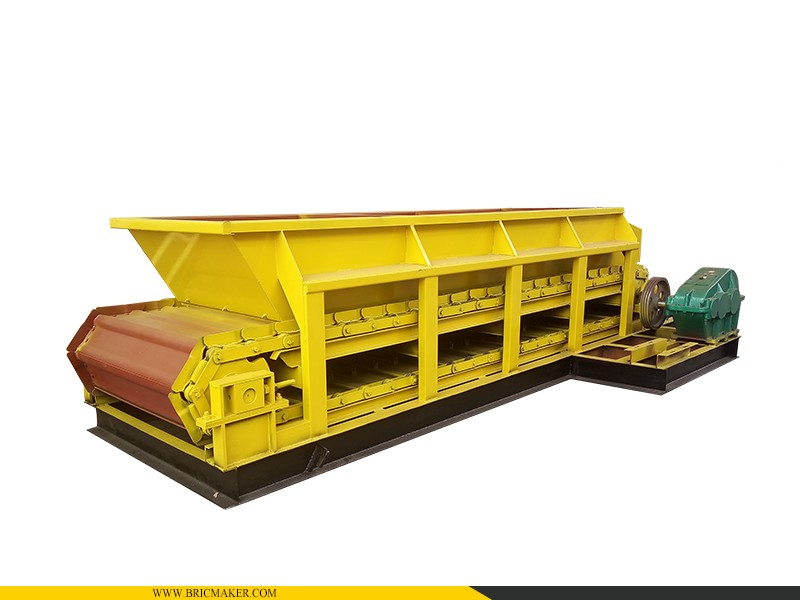

Plate Feeder Hard Lump Material Feeding Machine


Brief introduction:

This plate feeder is suitable for conveying hard lump materials. It is used to convey lump raw materials from storage warehouse to downstream equipment in enterprises like miners, chemistry, brick and tiles, building materials.

The machine is driven by electric motor, then the gearbox drive the chains move continuously and uniformly at a low speed. By adjusting the tail tensioning device, the chain and sprocket are correctly meshed, realizing conveying materials. This machine has the features of good steel rigidity, smooth running, no material leakage, and easy operation and maintenance.


Main technical parameters:

Models

BG100

BG120

Capacity: m³/h

40-70

50-100

Feeding size: mm

≤ 300

≤ 300

Belt width: mm

1000

1200

Belt speed: m/min

9.7

9.7

Box volume: m³

3.5

4.2

Total power: kw

7.5

11

Overall Dimensions: mm

5080×2100×1330

5080×2300×1400

Total weight: kg

5,000

6,500
