Daily 200,000 pcs Internal Combustion Brick Production Line Drying and Firing Tunnel Kiln


Brief introduction:

This production line is designed for big size brick factory in South Asia. The raw materials of bricks are clay and coal. The coal is in small lump and need to be crushed and the clay are mixed with stones and need to be purified and crushed.

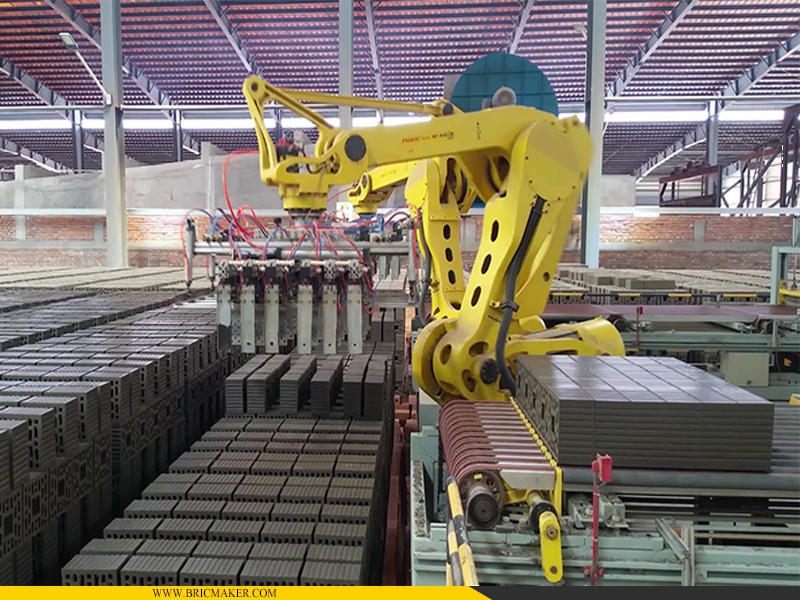

The wet bricks to be shaped is in 84*84*194mm with 4 holes. The vacuum extruder extrudes 6 columns at the same time and the block cutter cut 48 pieces bricks one time. The stack robot grabs 96 pieces wet bricks one time. The brick shaping line’s output design is 30,000 pcs bricks/hour. And the brick shaping line works 8 to 10 hours per day.

For the fired bricks packing, there are manual pallet, semi-auto pallet, and fully automatic pallet. We offer semi-auto and full auto package system.


Main technical parameters:

Production line name

Internal Combustion Brick Production Line

Raw materials

Coal (small lump), clay (mixed with stone)

Wet brick size

84x84x194mm

Extrusion line output

30,000 pcs/hour

Kilns

One drying kiln, one firing kiln

Kiln width

3.6m

Kiln output

210,000 pcs/24 hours


Cut green bricks:

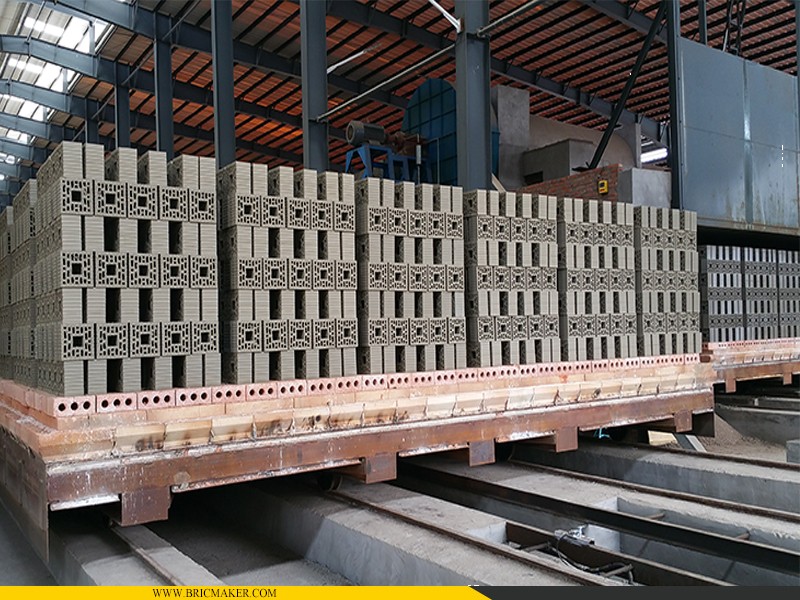

Green bricks stack diagram on kiln car:



Video of drying cart auto load and unload system:
