Gantry Brick Stack Pile Grab Lift Machine Tunnel Kiln Rotary Kiln


1. Brief introduction

Gantry type brick stack grab & lift machine is widely used in tunnel kiln or rotary kiln. It is reliable and easy operation. The whole machine is made by welding steel with good rigidity and stability. The system is driven by stable hydraulic system and the holding operation accuracy is high. The elongate door frame structure with longer axle distance makes the machine working flexibly under heavy load.


2. Main technical parameters


Applicable brick type

Standard brick, porous brick, hollow block, etc

Lifting height

1500-4500mm

Crane span

8-35m

Crane stroke

20-100m

Grab weight

1000-5000kg

Grab thickness

200mm

Grab arm length

1200-4200mm

Tensile range

Open 1400mm, Tension 1200mm

Power

380V

Operating voltage

36V

Rotation angle

360°

Power consumption

24.5KW

Operation type

Wireless remote control

Control type

PLC, frequency conversion

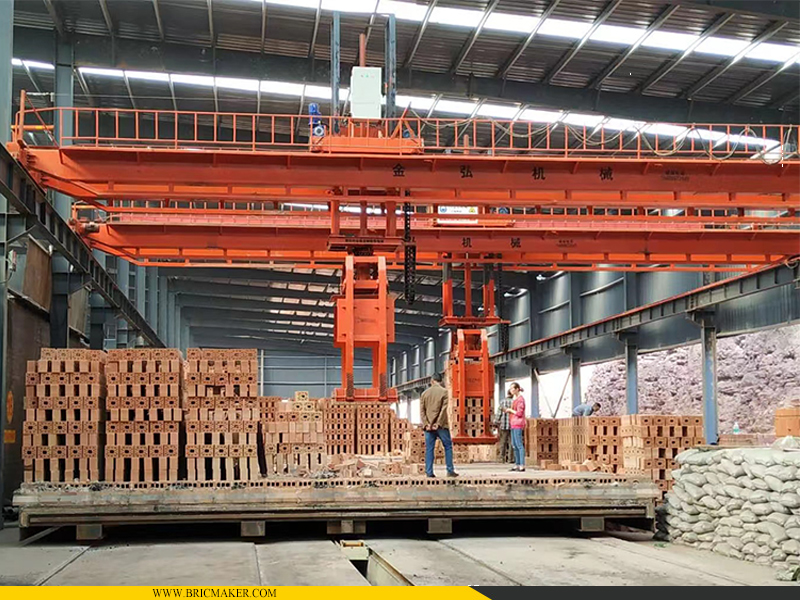

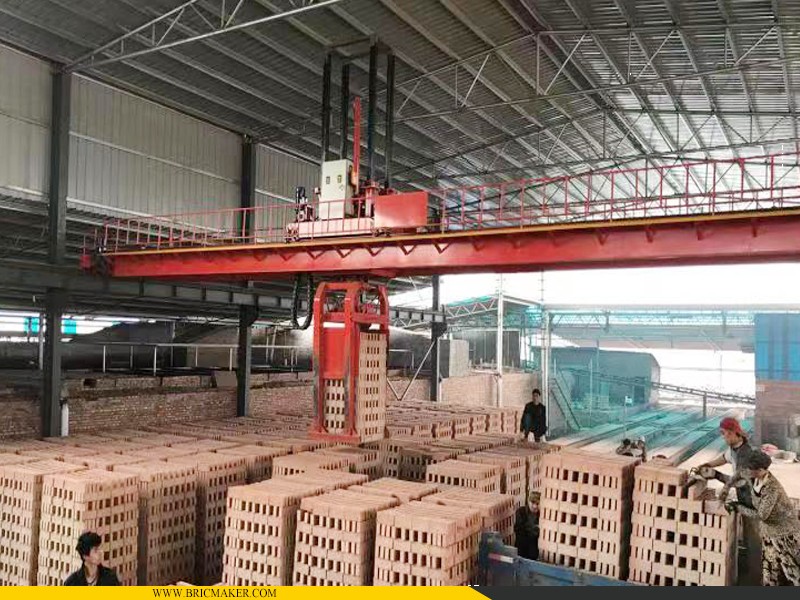

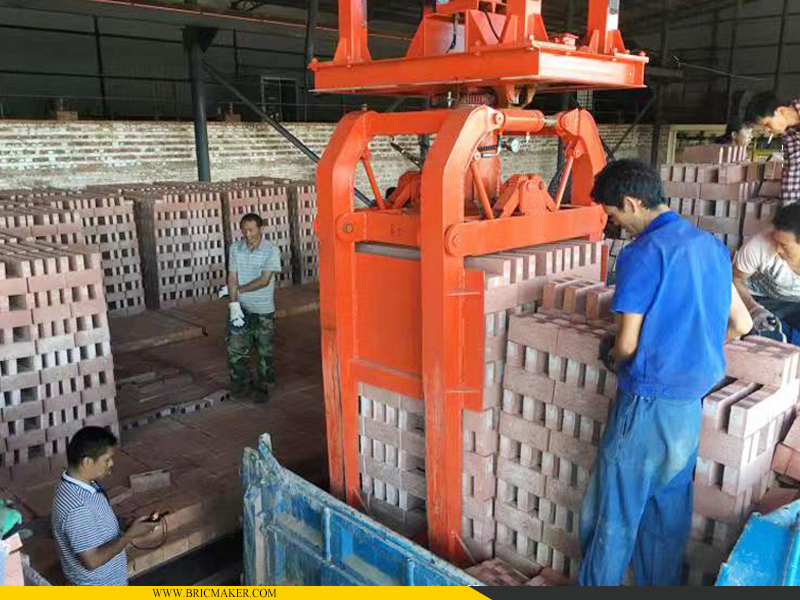

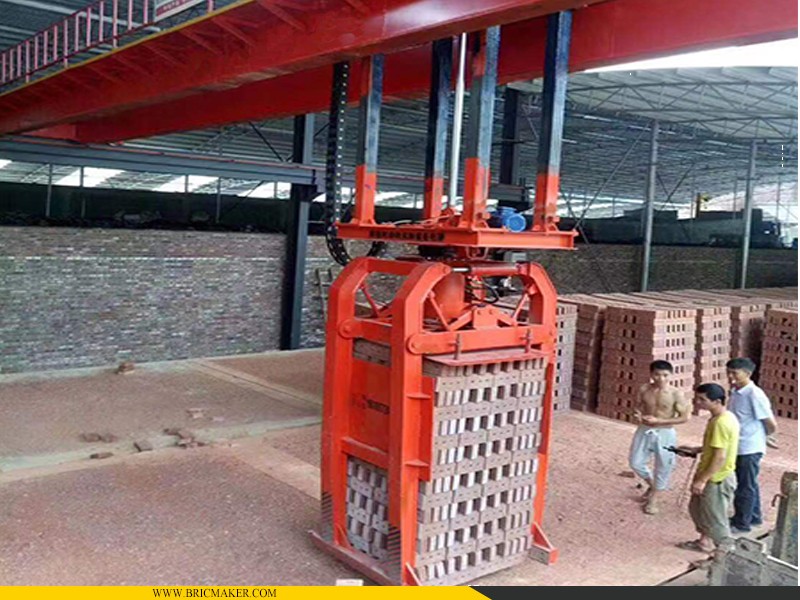

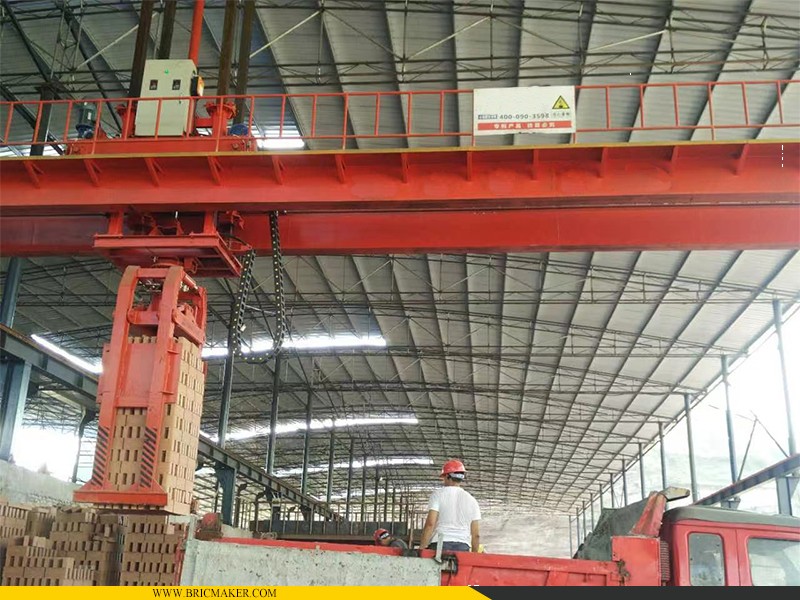

3. Detail images:
