Clay Brick Automatic Cut Transfer Turnover Stack Line Twin Robots 500KG in Parallel

1. Brief introduction

The parallel twin robots automatic cut transfer turnover stack line is applied for high output modern brick making factory. It realizes cut, transfer, gap, turnover, stack green bricks onto kiln cars or dryer racks automatically. The whole process is controlled by PLC.

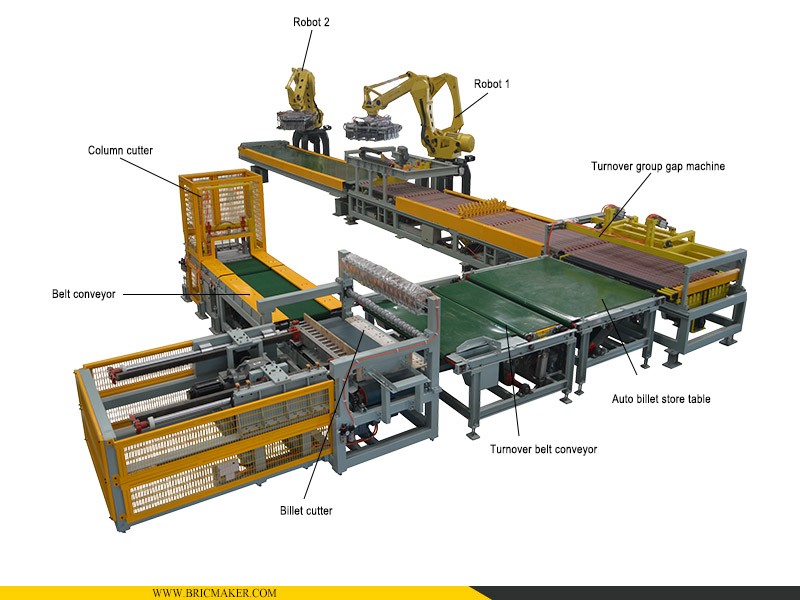

The automatic cut and stack line is composed of column cutter, billet cutter, auto billet store table, two billet turnover group machines, two robots of 500kgs, PLC control system, and etc.

2. Main features:

Reliable, flexible, easy operation.
The line could be single robot, two robots or three robots paralleling arranged.
Robot grab could be gap or no gap.
The billet could be turnover 90 degree or non.
Applicable to different sizes of bricks.
Applicable to customer’s different stack type.
High efficiency, save manual cost.

3. Main technical parameters:

Name	Clay Brick Automatic Cut Transfer Turnover Stack Line Twin Robots 500KG in Parallel
Model	500kg*2
Robot qty	2
Work frequency	(240-400)*2 pcs/hour
Capacity	14400-24400 pcs/hour
Stack type	3X7, 4X6
Total power	(25～39+16.7)x2
